Set branch condition in rule definition¶

The function to set branch condition in branch node placed in route definition is described with the procedure.

Contents

Branch condition
Create branch condition of IM-BIS

Branch condition ¶

It is a function to set the conditions to determine the next task in the process execution status dynamically.

There are two methods to set branch conditions i.e. BIS in-charge can arbitrarily set branch destination at the time of completing a particular task, and/or branch destination can be automatically set based on previously defined rules.

Create branch condition of IM-BIS ¶

Create branch condition of BPM/Work flow by the following procedure.

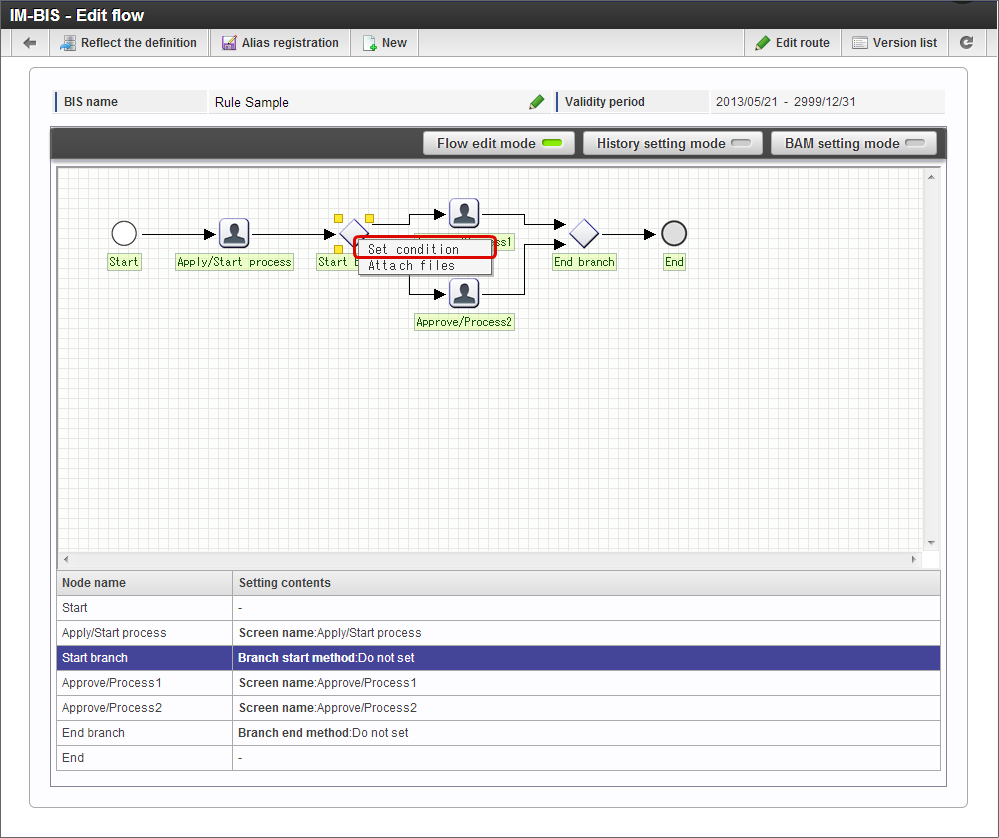

On “IM-BIS - Edit flow” screen, right-click the node “Start branch” to set the branch condition and click “Set condition”.

Click “Setting” against the condition for the flow of processing to the branch destination.

In case of performing branching when all the set conditions match, set as “True if all the conditions are satisfied”, and when any of the conditions match, set as “True if any condition are satisfied”.

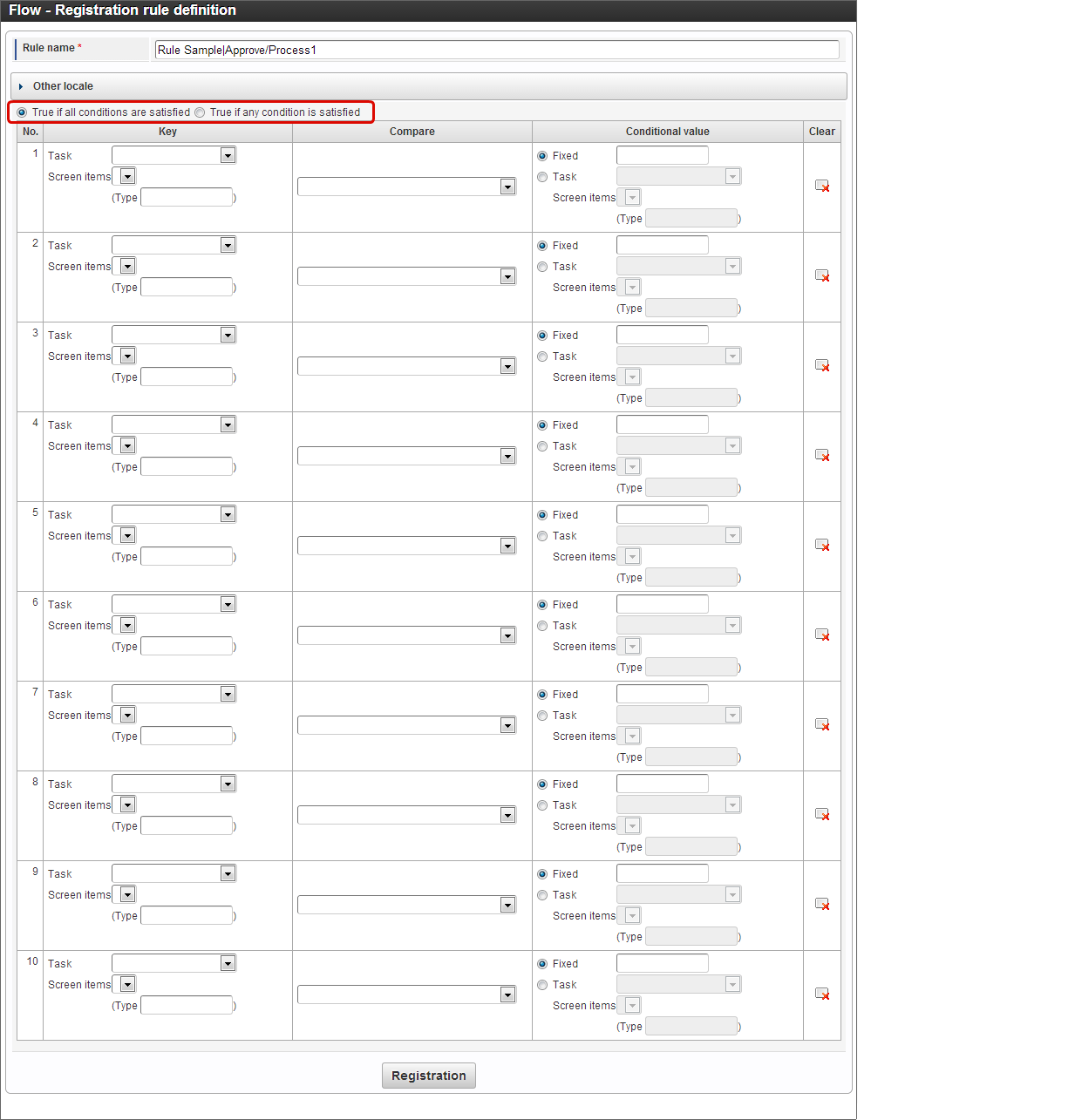

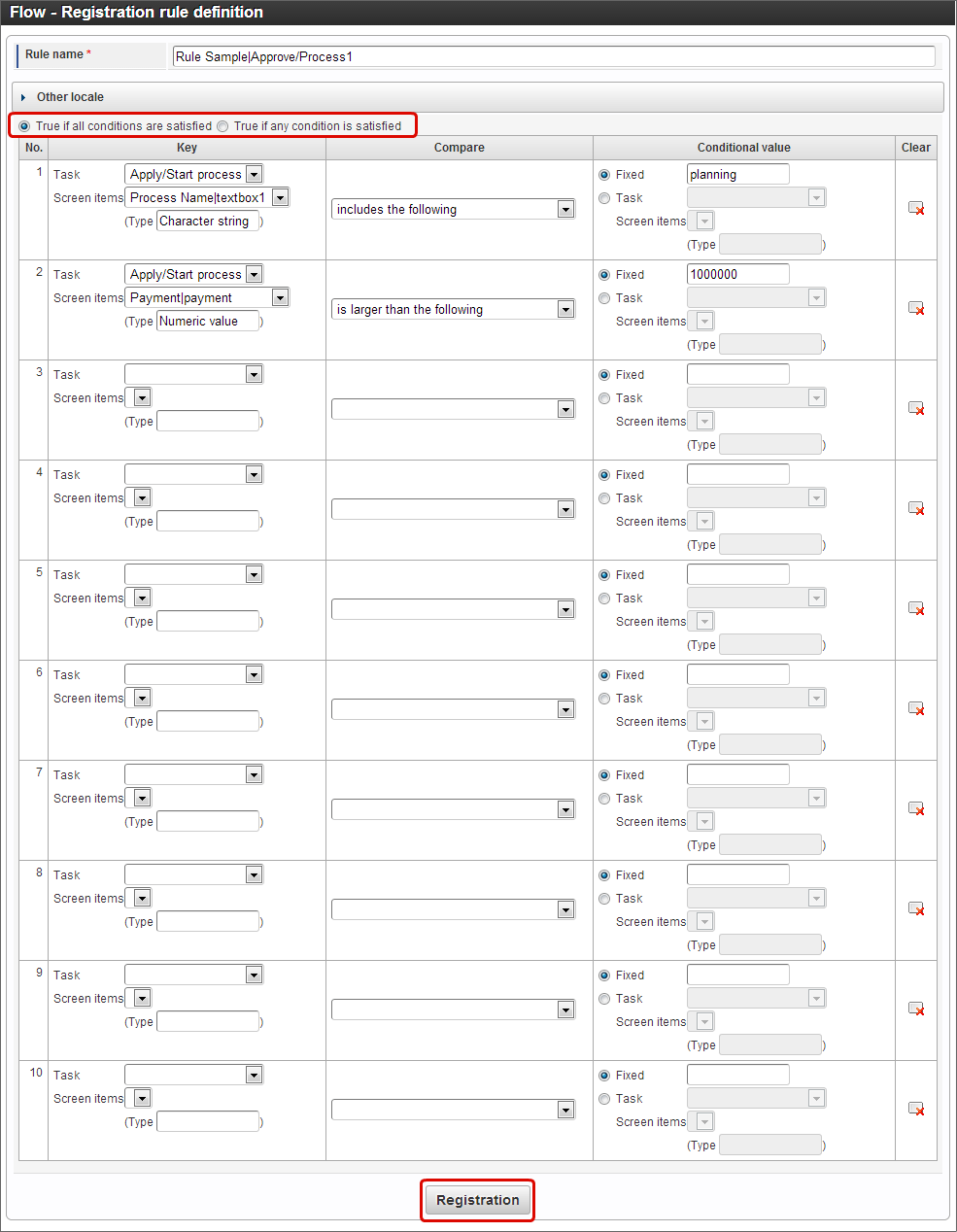

Set “Key”, “Compare”, “Conditional value” in “Flow - Registration rule definition”.

Click “Registration” once the conditions to execute the branch destination are set.

Set the conditions in the same way for other branch destinations set in the branch start node.

Branch conditions are set when you click “Registration” at the end.

Note

Branch conditions of IM-BIS flow cannot perform settings of “Start branching in user program”.

In IM-BIS flow, it is not possible to set branching end conditions for the branch end node.
