Use Button authority setting (Only BPM)¶
“Button authority setting” can be performed in task processing only when BIS creation type is “BPM”.
Contents
Button authority setting¶
It is a feature to enable a function wherein return or interruption can be determined other than the progress of the process, while processing tasks.Button authorization setting controls the operation of “Button (BPM registration)” placed on the screen.
- In BPM flow, set the “Button authority setting” to “Enabled” while performing advanced settings of the job in which processing screen is used.
Difference between the operation when Button authority setting are enabled and disabled¶
Button authority setting: Enabled
When “Process” is clicked, the process continues immediately after the registration of business data.When “Option process” is clicked, the processing screen which determines the progress of the process is displayed and processing can be done by selecting any processing type.Button authority setting: Disabled
When “Process” is clicked, the process continues immediately after the registration of business data.
Configure Button authority setting¶
Configure the Button authority setting by the following procedure.

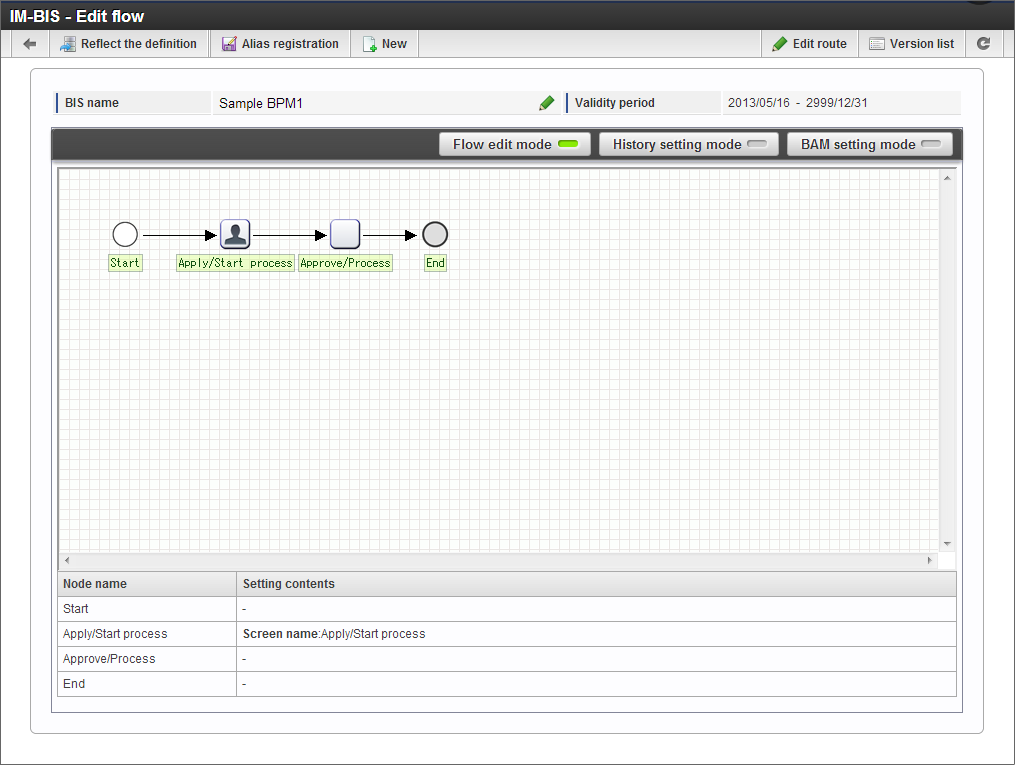

“IM-BIS - Edit flow” for which the BIS creation type is “BPM” is displayed.
In “IM-BIS - Edit flow” screen, right click the target task for which the Button authority setting are to be enabled/disabled.
When “Button authority setting” is clicked, the Button authority setting change from disabled to enabled.
After clicking “Button authority setting”, right click once again and check whether it is displayed as “Enabled” as shown below.

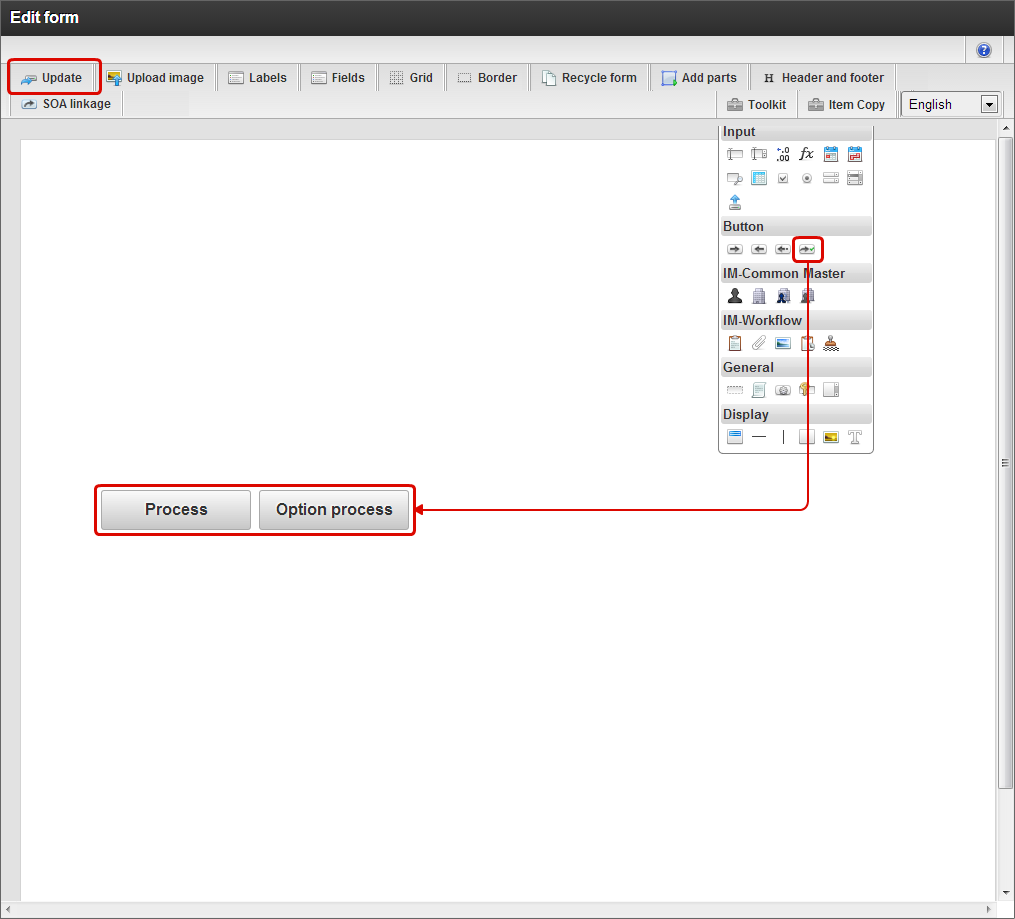

Displays form edit screen when “Screen” -> “Create New” or, “Screen” -> “Open” is clicked in the target task.
In case “Button (BPM Registration)” is not placed on the screen, button authorization setting function can be used if it is placed at an arbitrary location and “Update” is clicked.
- Execute “Reflect the definition” when returned to the ‘IM-BIS - Edit flow’ screen.
