Uninstall IM-FormaDesigner for Accel Platform¶
Uninstallation of files related to IM-FormaDesigner for Accel Platform is performed in this chapter.Check the manual of the same product for the uninstallation of middleware products etc.
Perform the operations sequentially according to the following procedure.
Contents
Before the operation...¶
Take a backup of the required files such as log file etc.
Delete definition files of IM-BIS¶
Delete the data of IM-Workflow and IM-FormaDesigner used in IM-BIS.
Delete license¶
Access the system administrator login screen “http://Host name:Port No./Context path/system/login” from the Web browser.

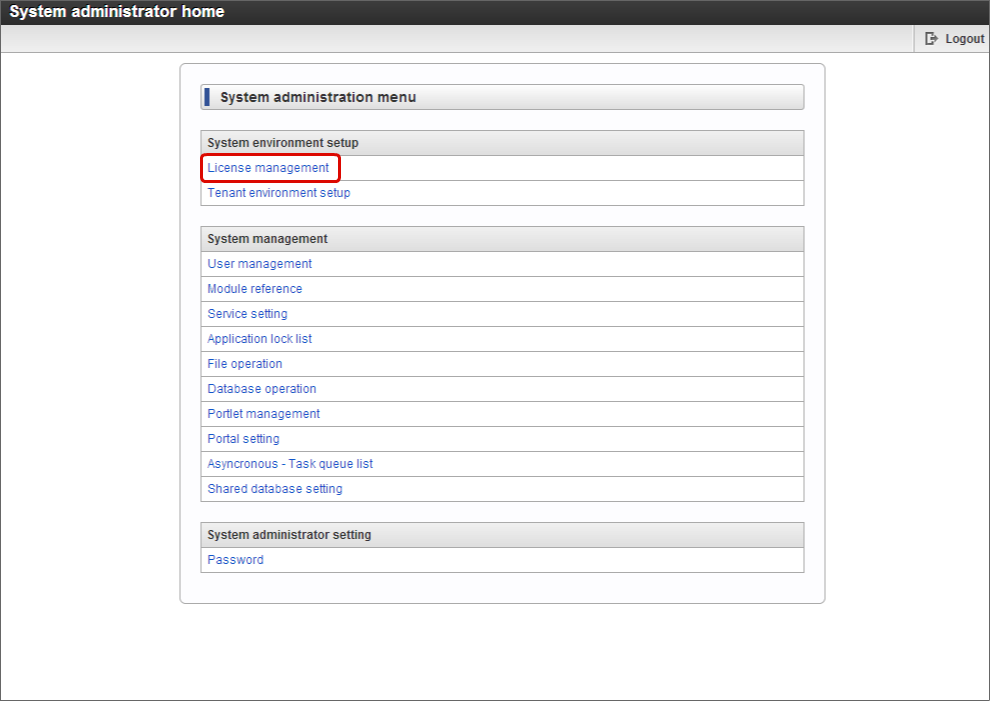

Click “License management” from Menu.

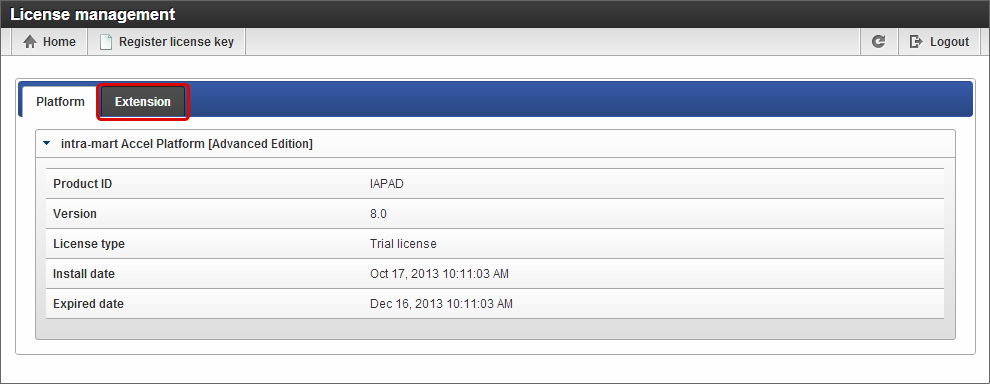

Click the “Extension” tab.

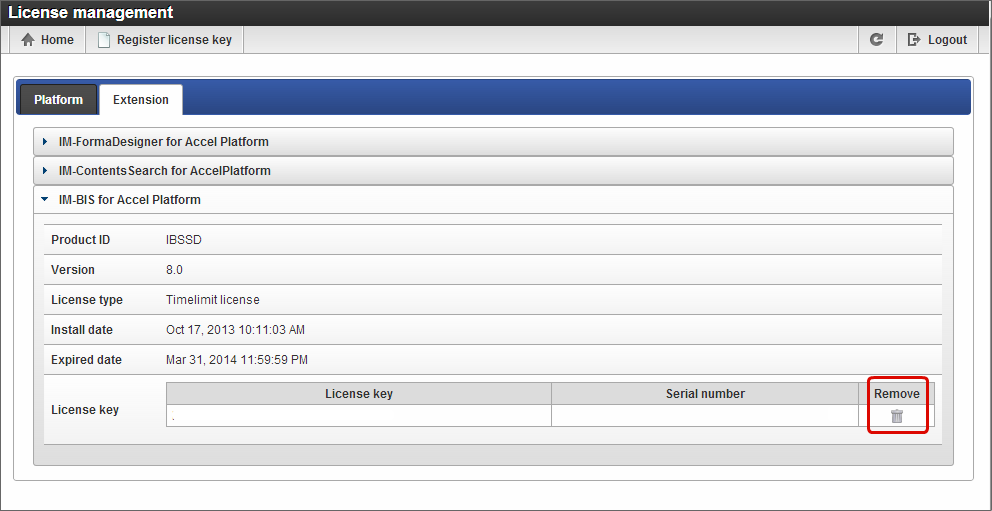

Delete the license of IM-BIS for Accel Platform from the “Delete” icon of license key.
Stop, undeploy Resin¶
- Stop Resin and undeploy ‘war’ by referring to Start/End .
Recreate war file¶

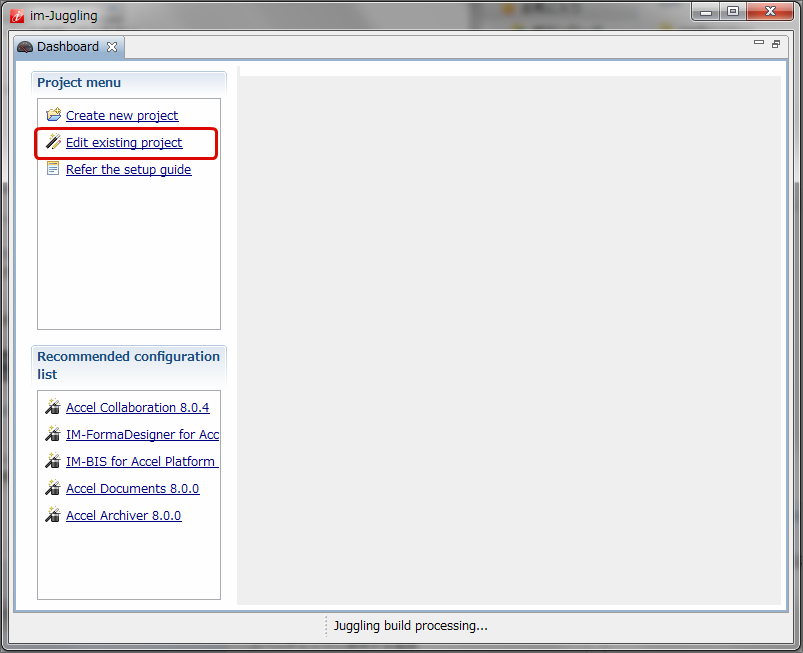

Run juggling.exe.

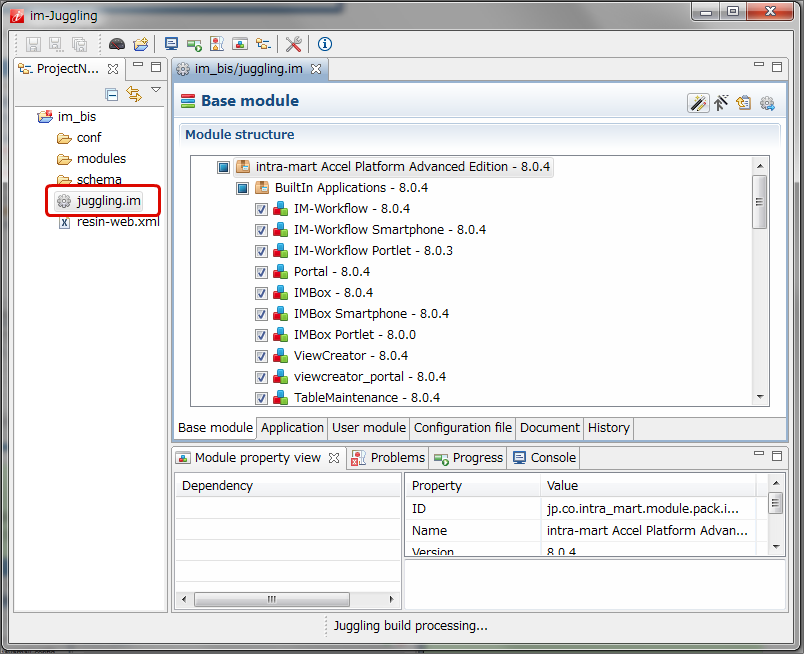

Double click “juggling.im” which exists in the project during environment creation from Project Navigator.

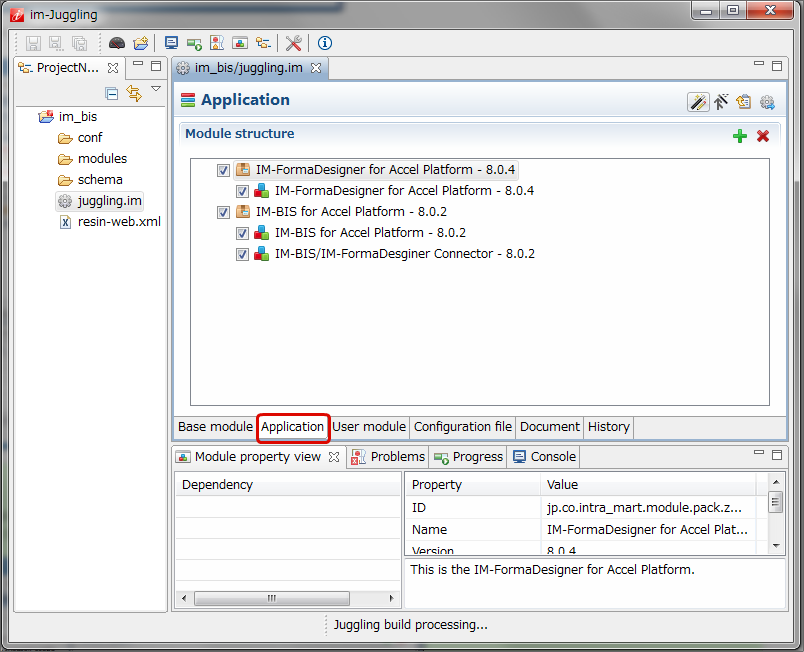

Click “Application tab”.

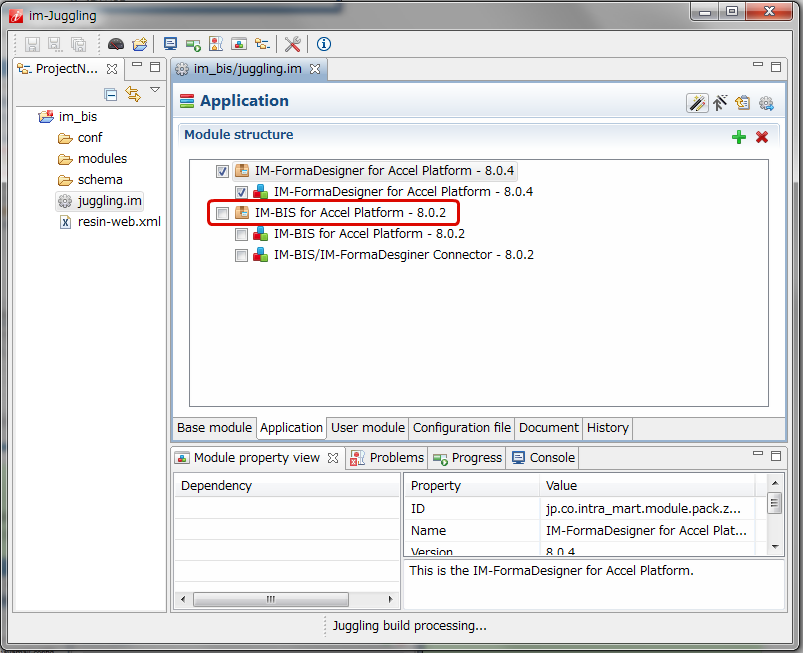

Uncheck IM-BIS for Accel Platform.
Note

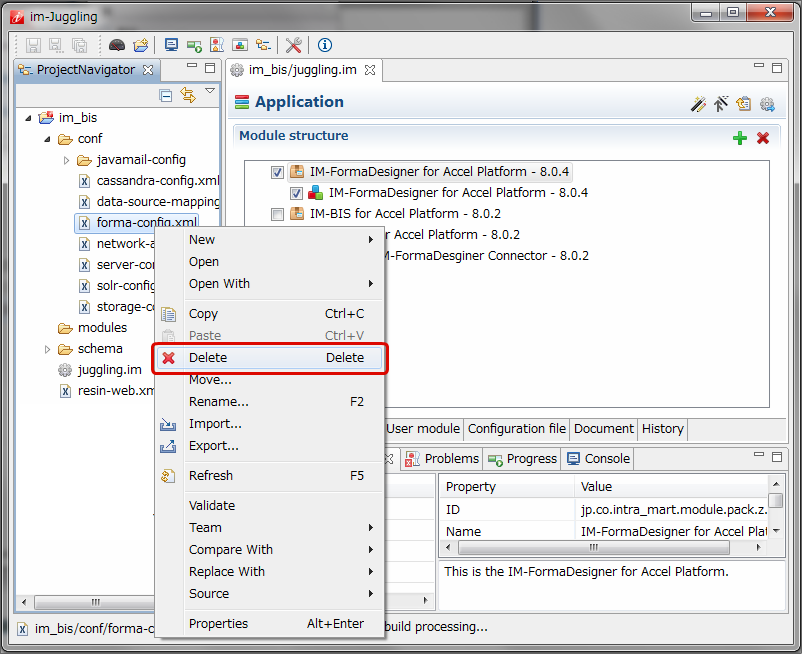

If configuration file of IM-FormaDesigner for Accel Platform is output during environment creation, it should be deleted manually.Select the file to be deleted and right click to delete.
Recreate war file by referring to Export war file .
Delete static files (While using Web server)¶
Output the static file by referring to Export static file .Replace the output static file with the file placed on Web server.Warning
If there exist files that are placed manually without using im-Juggling, place the files manually again after replacing.
Start, deploy intra-mart Accel Platform¶
- Start Resin by referring to Start/End and deploy the re-created war file.
