Client Side JSP Structure and Inter-gadget Communication¶
JSP Structure and inter-gadget communication when creating by general structure in intra-mart Accel Kaiden! are described here.
Master Maintenance Function¶
JSP Structure¶

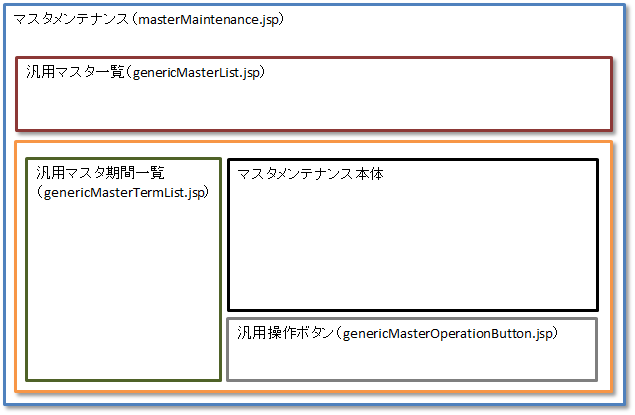

Master maintenance function is structured by some gadget functions as below.
Notes
Above picture shows the master maintenance structure which is the standard in intra-mart Accel Kaiden!.It does not have to be this structure.Notes
In case of the non term setting master, [Generic Master Term List (genericMasterTermList.jsp)] is not necessary.
Notes
Written above are all made into gadget and it passes and receives the information by inter-gadget communication.
Inter-gadget communication which can be received by master maintenance ¶
Initialization¶
Event Key initialize Event Occurence Timing When screen loading Event Type push Parameter
Event Issuer Master maintenance (masterMaintenance.jsp) Contents which should be processed Necessary processes in each gadget
New Registration Screen Display Instruction¶
Event Key trunsNewEntry Event Occurrence Timing Event Type push Parameter Main key of target data (JSON format) Event Issuer Master maintenance (masterMaintenance.jsp) Contents which should be processed Setting for initialization or initial value of input items to display the new registration screen.
Update Screen Display Instruction¶
Event Key trunsRenewEntry Event Occurrence Timing Event Type push Parameter Main key of target data (JSON format) Event Issuer Generic master list (genericMasterList.jsp) Contents which should be processed Initialization of input item to display update screen Notes
Event is delivered in order of data loading instruction and update screen display instruction.
Data Loading Instruction¶
Event Key loadData Event Occurrence Timing
*Update Screen Display InstructionEvent Type push Parameter Main key of target data (JSON format) Event Issuer Master maintenance (masterMaintenance.jsp) Contents which should be processed Data loading to display update screen Notes
Event is delivered in order of data loading instruction and update screen display instruction.
Request Main Key of Displaying Data¶
Event Key claimCurrentDataPk Event Occurrence Timing
- When validation icon is pressed
- When invalidation icon is pressed
- When delete button is pressed
Event Type pull Parameter
Event Issuer
- Generic master term list (genericMasterTermList.jsp)
- Generic operation button (genericMasterOperationButton.jsp)
Contents which should be processed Return the main key, which is currently displayed, in JSON format
Validation Check Pre-process¶
Event Key preSingleValidate Event Contents Generic event that is issued before validation check when registration/update button is pressed Event Type push Parameter
Event Issuer Generic operation button (genericMasterOperationButton.jsp) Contents which should be processed
Application Format Function¶
JSP Structure¶

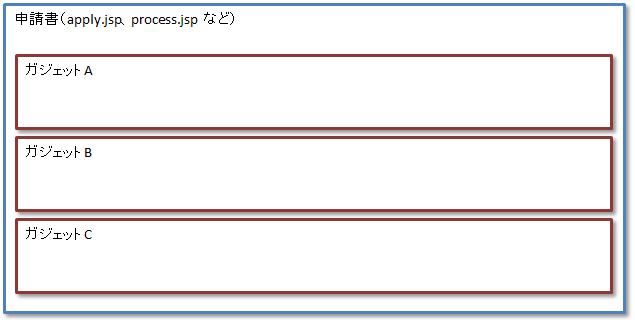

In application format function, JSP of each gadget is included according to the setting contents of [Application Master Maintenance].
Inter-gadget Communication which can be received by gadget (JSP)¶
When Screen Loading¶
Inter-gadget communication is performed by following order when screen loading.
Initialization¶
Event Key initialize Event Type push Parameter
- imwSystemMatterId
- imwUserDataId
- searchCriteriaCompany
- searchCriteriaDate
- imwAuthUserCode
- pageType
Event Issuer Application form [1] Contents which should be processed Necessary process for each gadget理
Pre-warning Display¶
Event Key showPreWarning Event Type push Parameter
- imwSystemMatterId
- imwUserDataId
- searchCriteriaCompany
- searchCriteriaDate
- imwAuthUserCode
- pageType
Event Issuer Application form [1] Contents which should be processed
Data Loading Pre-process
Event Key preLoadData Event Type push Parameter
- imwSystemMatterId
- imwUserDataId
- searchCriteriaCompany
- searchCriteriaDate
- imwAuthUserCode
- pageType
Event Issuer Application form [1] Contents should be processed Necessary process before data loading理
Data Loading¶
Event Key loadData Event Type push Parameter
- imwSystemMatterId
- imwUserDataId
- searchCriteriaCompany
- searchCriteriaDate
- imwAuthUserCode
- pageType
Event Issuer Application form [1] Contents should be processed Settings for data loading and screen items
Data Loading After-process
Event Key postLoadData Event Type push Parameter
- imwSystemMatterId
- imwUserDataId
- searchCriteriaCompany
- searchCriteriaDate
- imwAuthUserCode
- pageType
Event Issuer Application form [1] Contents should be processed Necessary process after data loading
Notes
In the inter-gadget communication, after instructing
[Initialization] to all gadgets, next inter-gadget communiation is processed
only after all gadget processes such as instructing [Advance Warning
Display] to all gadgets are completed.
When Application Copying¶
When application copy button is pressed and if user selects an application form to be copied, following inter-gadget communication will be processed.
Application Form Copy¶
Event Key loadData4Copy Event Type push Parameter
- imwSystemMatterId
- imwUserDataId
- searchCriteriaCompany
- searchCriteriaDate
Event Issuer Application form [1] Contents should be processed Load the copy origin application form data and copy to the screen item.
Application Form Copy After-process
Event Key postLoadData4Copy Event Type push Parameter
- imwSystemMatterId
- imwUserDataId
- searchCriteriaCompany
- searchCriteriaDate
Event Issuer Application form [1] Contents should be processed Necessary process after application form copy
Bottom Note
| [1] | (1, 2, 3, 4, 5, 6, 7) It specifies the parent JSP which includes gadget JSP
|
