Application Linkage Program¶

Item

Summary
Sample Implementation

Summary ¶

Following are the examples of processes that can be made by utilizing APIs provided by intra-mart in the uniquely created applications.

Post notification message of application to ApplicationBox

Watch Application Information

Post Message from Application Information Watched to ApplicationBox

Sample Implementation ¶

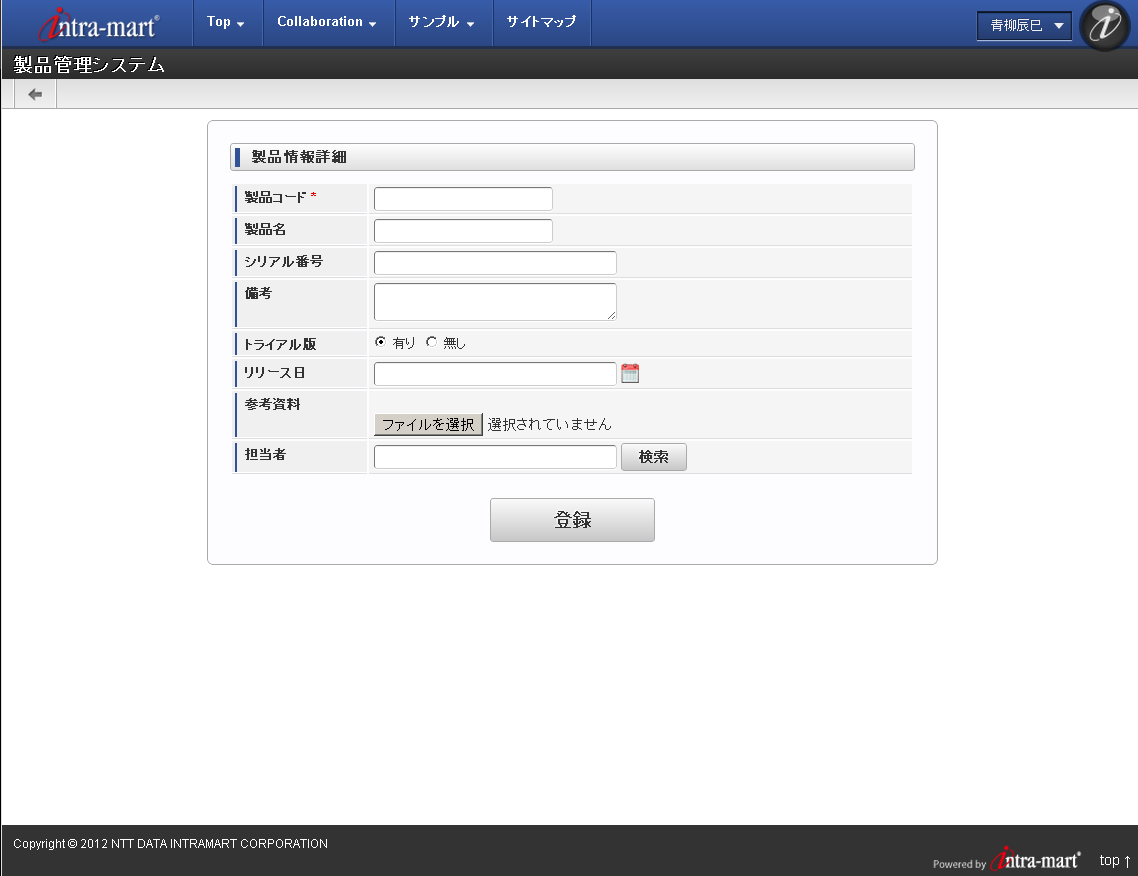

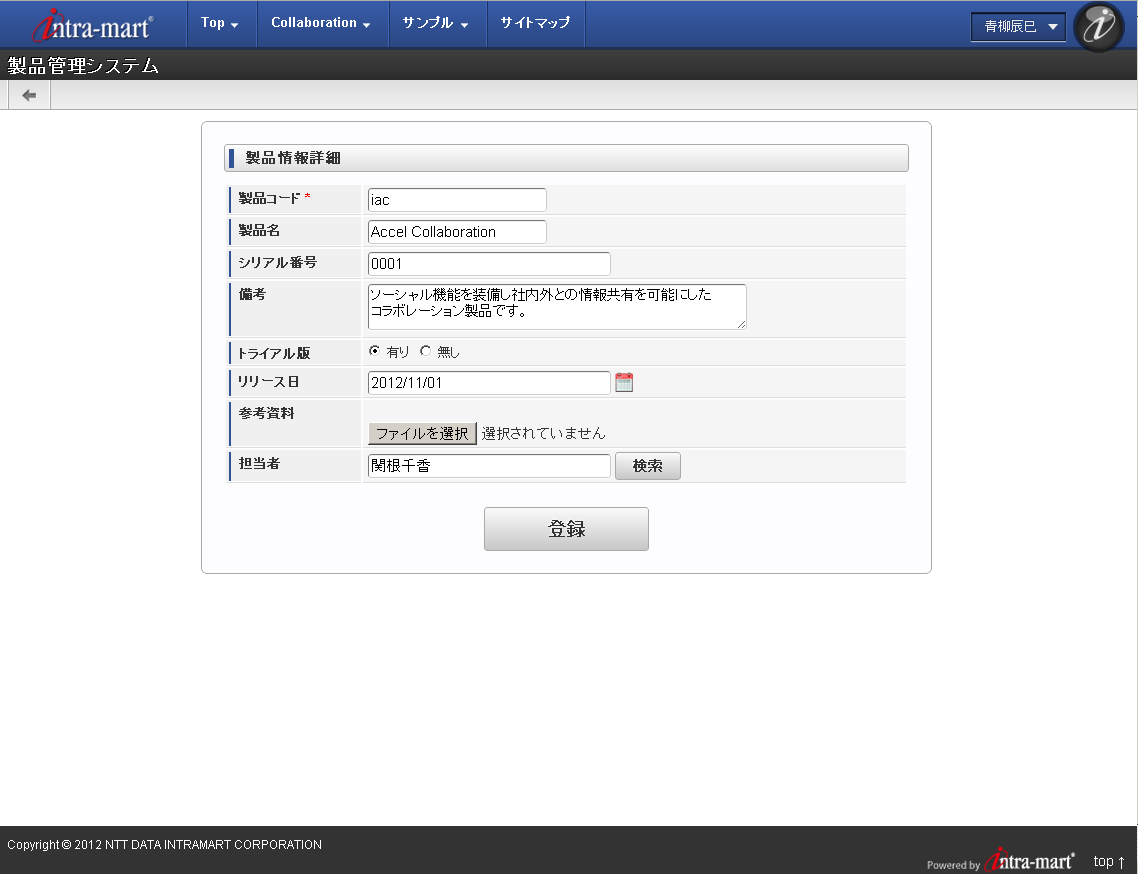

This sample describes the implementation method of the function to give notification from the product management system to ApplicationBox.

Creation of Setting File ¶

Please set the following file in the created application to do linkage with the application.

Example of Setting File
src/main/conf/imbox-application-config/seihin.xml
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
<?xml version="1.0" encoding="UTF-8"?>
<tns:imbox-application-config
    xmlns:tns="http://www.intra-mart.jp/imbox/imbox-application-config"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://www.intra-mart.jp/imbox/imbox-application-config ../../schema/imbox-application-config.xsd ">

  <tns:application
        applicationCd="seihin"
        applicationName="CAPTION.IMBOX.SEIHIN"
        iconPath="application/appli.png"
        messageTypeCd="MESSAGE_TYPE_MESSAGE" />
</tns:imbox-application-config>
Following attributes are set in the <tns:application> tag.

Attributes Contents

applicationCd Application Identification ID

applicationName Property ID of Application Display Name

iconPath Path of Application Display Image

messageTypeCd Message Type Identification CD

Column

In case iconPath has not been specified, default icon image offered by IIMBox is applied.

In case iconPath is specified, please set the image in the Storage area.

In case MESSAGE_TYPE_MESSAGE is set to messageTypeCd, it is displayed on the timeline
in the message format offered by IMBox.

If you want to display in the ApplicationBox in your own format, please add the message type and the
message type identification CD of the added message.

Please refer to Message Type Addition Program for addition of message types.

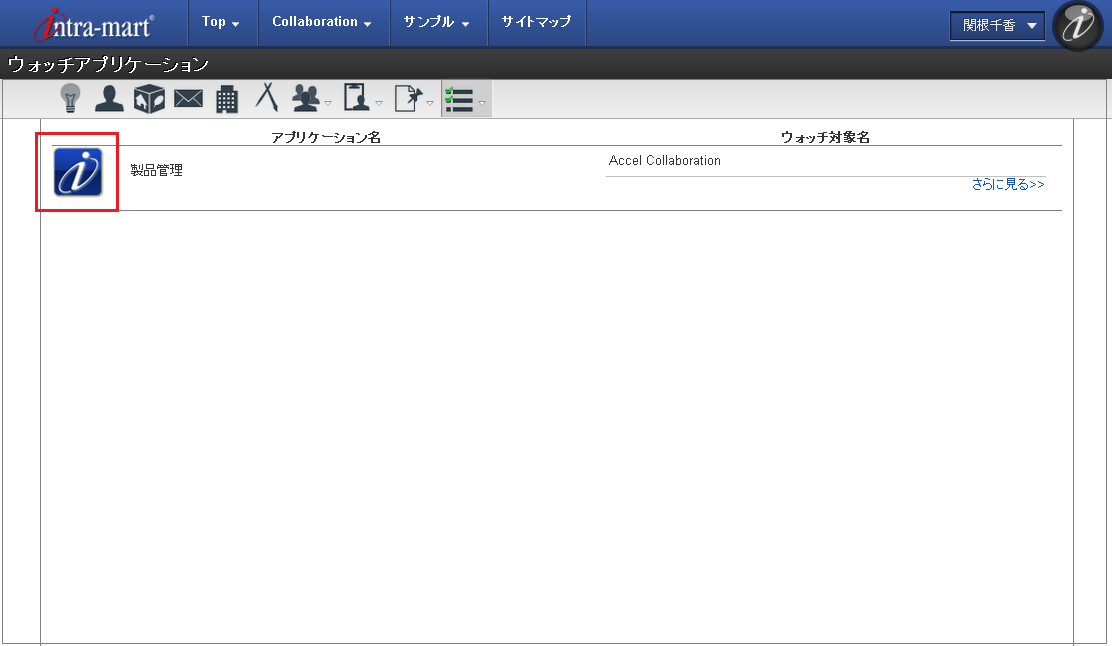

In case iconPath is not specified

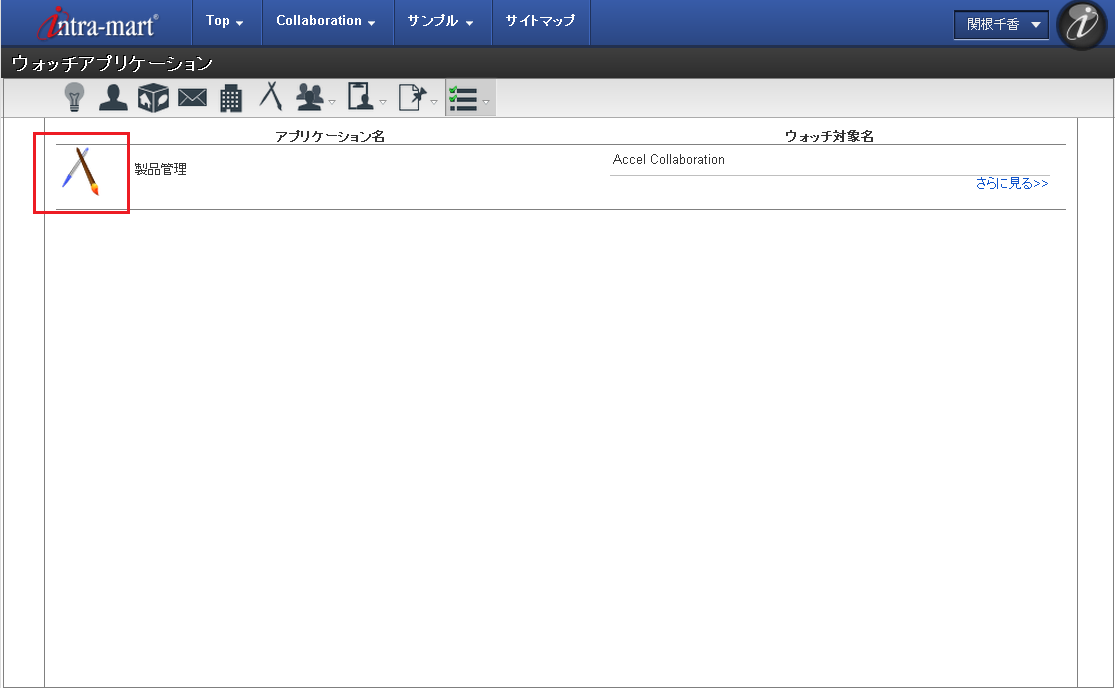

In case iconPath is specified

Posting Process to A pplicationBox ¶

Notification from the application with which application linkage has been set is posted to ApplicationBox.

Please implement the following process for the timing when the application notification is needed.

Implementation Example
imbox.ApplicationBoxService#sendNoticeMessage() is used to post a message to IMBox.

src/main/jssp/src/kintai/register.js
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
   function  send(){
     var applicationBoxService = new imbox.ApplicationBoxService();
     var message = {
         applicationCd : 'seihin',
         sendUserCd    : 'aoyagi',
         messageText   : 'Product Information was registered.',
         messageTypeCd : 'MESSAGE_TYPE_MESSAGE',
       };
     applicationBoxService.sendNoticeMessage(message, ['sekine']);
   }
Following parameters are set as Notification Message Information.

Parameter Contents

applicationCd Application Identification ID

sendUserCd Send User Code

messageText Message for Display

messageTypeCd Message Type Identification CD

Column

Identification ID for each information that does the watching in application is set to the second argument.

The sample above sets only 1 ID, but multiple Identification IDs can be specified.

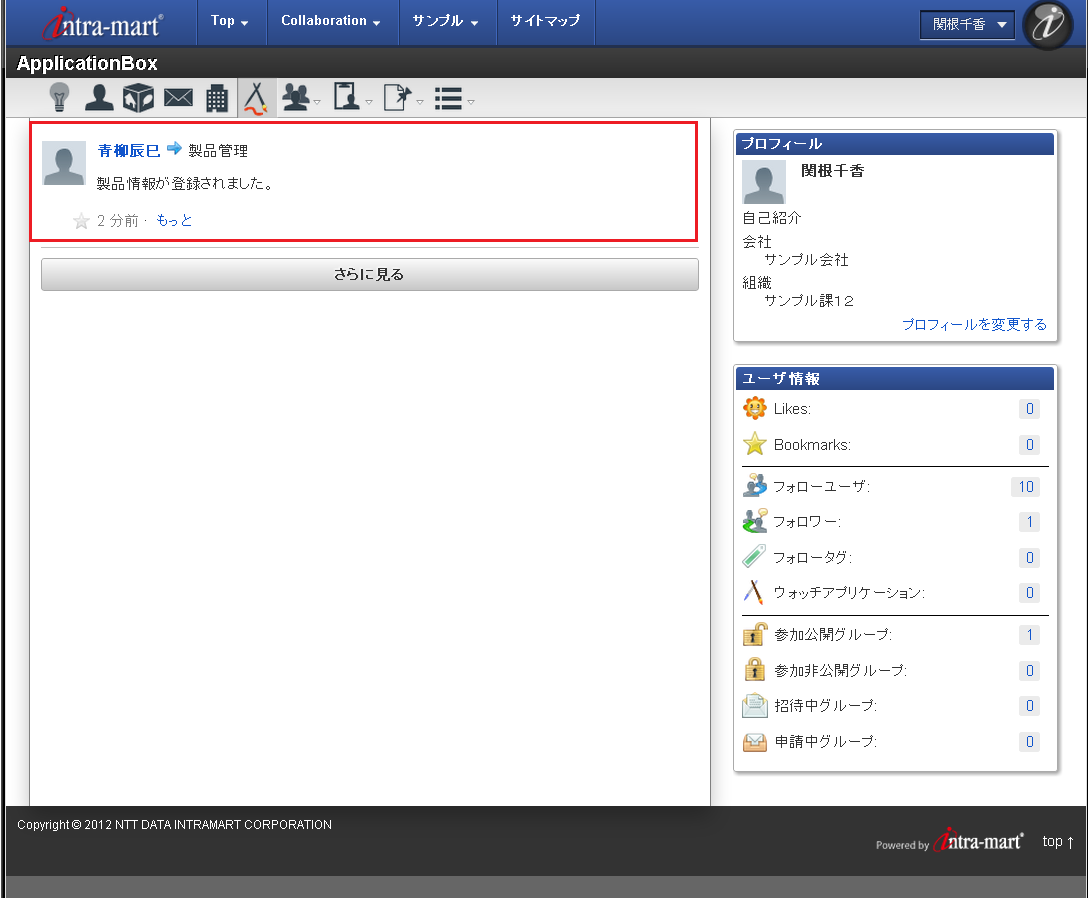

After the process listed above is completed, registration notification of the product information for Ms. Sekine (sekine) is displayed
in the ApplicationBox as shown below.

Implementation of Watch Process of Application Information ¶

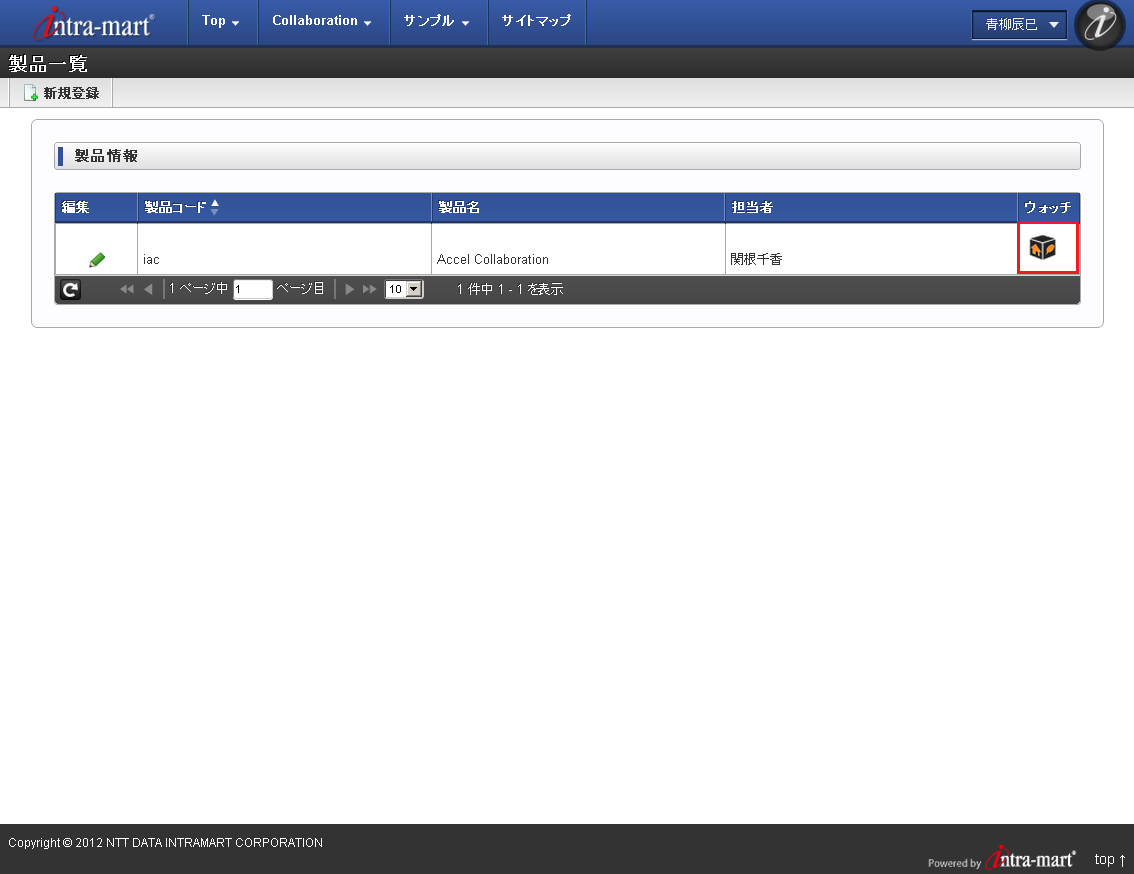

This is a sample of implementation that watches application information.

When the application is being watched, notification is given to ApplicationBox, if there is a change in the application information that is watched.

Please implement the following process to the application information to be watched.

Implementation Example
imbox.ApplicationOperations#watch() is used to watch the application.

src/main/jssp/src/kintai/watch.js
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
  function  watch(){
    var applicationOperations = new imbox.ApplicationOperations();
    var applicationCd = 'seihin';
    var entry4Targets = [];
    entry4Targets.push({
        targetId   : 'iac',
        targetName : 'Accel Collaboration'
      });
    applicationOperations.watch(applicationCd,entry4Targets);
  }
Following parameters are set as Watch Information.

Parameter Contents

applicationCd Application Identification ID

targetId ID of the Watch Target

targetName Name of the Watch Target

Column

Identification ID for each information that does the watching in application is set to the second argument.

The sample above sets only 1 ID, but multiple Identification IDs can be specified.

Please use imbox.ApplicationOperations#unwatch() to remove the Watch.

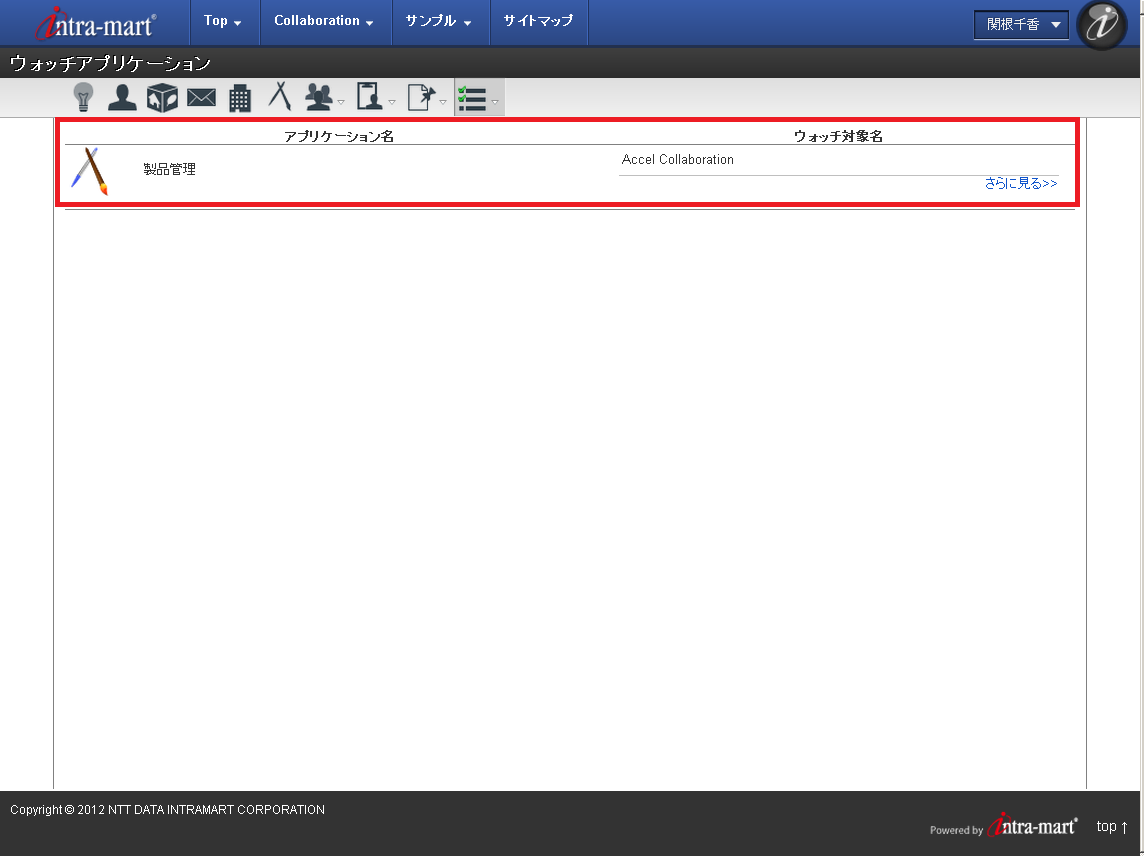

After the process listed above is completed, following is displayed on [ IMBox List] > [Watch Application Screen].

Posting Process from Application Watched to ApplicationBox ¶

This is a sample of implementation that posts message to ApplicationBox from the Application Information watched.

If there is a change in the application information for which Watch was implemented, notification is given to the ApplicationBox.

Please implement the following processes at the update timing of application information.

Implementation Example
imbox.ApplicationBoxService#sendWatchMessage() is used to post the message to IMBox.

src/main/jssp/src/kintai/update.js
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
  function  sendWatcher(){
    var applicationBoxService = new imbox.ApplicationBoxService();
    var targetId = 'iac';
    var message = {
        applicationCd : 'seihin',
        sendUserCd    : 'aoyagi',
        messageText   : 'Accel Collaboration information has been updated.',
        messageTypeCd : 'MESSAGE_TYPE_MESSAGE',
      };
    applicationBoxService.sendWatchMessage(message, [targetId]);
  }
Following are set as Watch Notification Message Information.

Parameter Contents

applicationCd Application Identification ID

sendUserCd Send User Code

messageText Message to be Displayed

messageTypeCd Message Type Identification CD

targetId ID of Application Information to be updated (ID of Watch Target used by Watch)

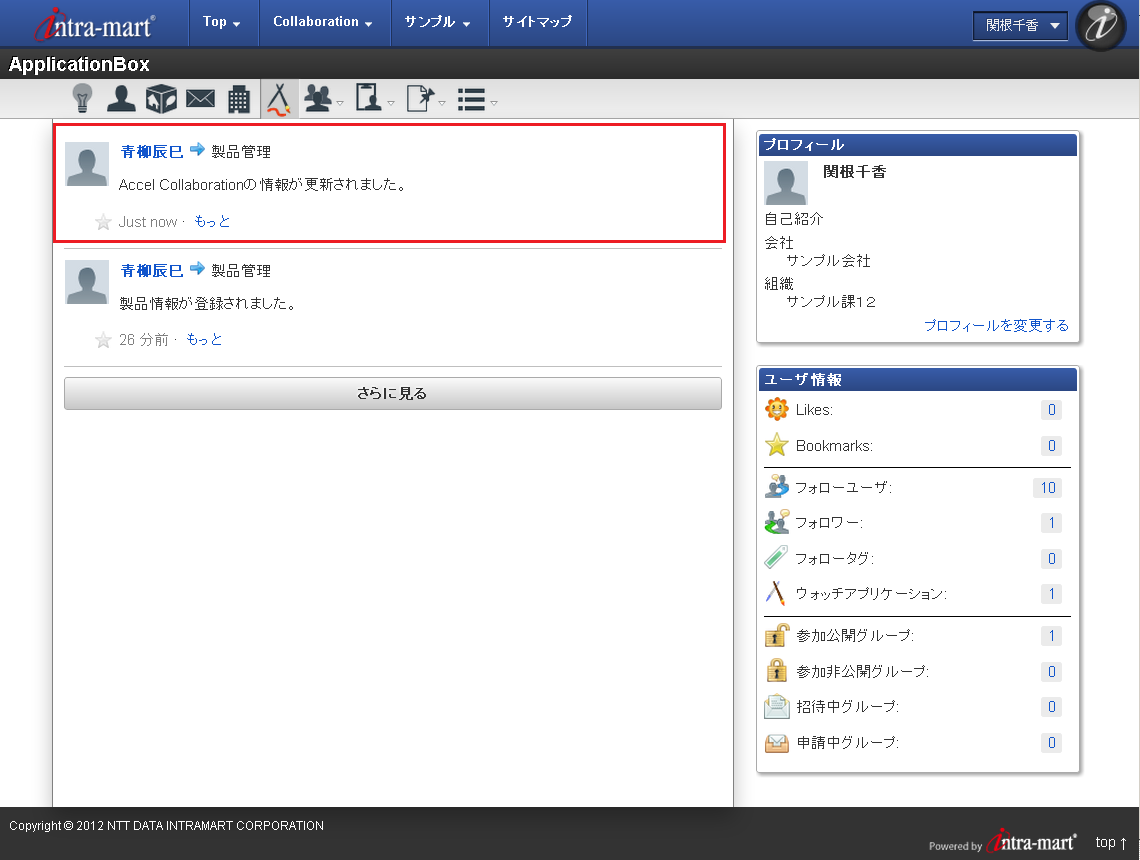

When the process listed above is completed, update notification of Accel Collaboration will be displayed in the
ApplicationBox of the user who did the watch.

Column

This time threadSummarizeCd is not used as an argument when sending notification message and
watch notification message. By specifying the threadSummarizeCd, messages can be displayed in the
thread format for each threadSummarizeCd.
