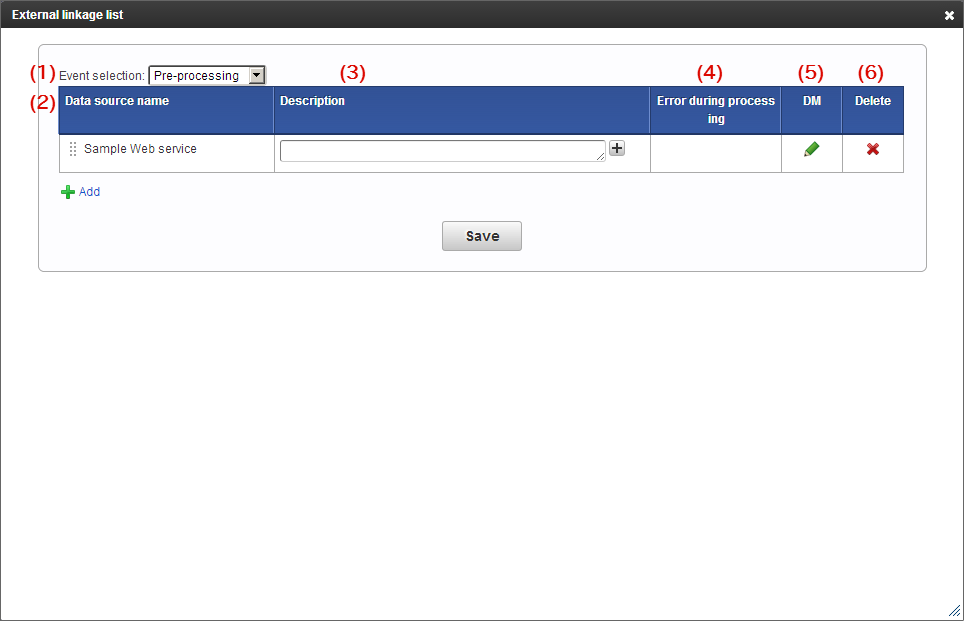

1. Event selection

   Select the execution timing for the previuos process and next process etc. of the task (Node) wherein external linkage process is selected.

2. Data source name

   Displays the set Web service name.

3. Description

   Enter description of settings of external linkage process and mapping.

4. Error during processing

   Sets how to execute the process when 2 or more external linkages are registered and there is an error in the external linkage process executed previously.

   • Continue the process -> Executes the process regardless of the result of previous external linkage process.
   • Stop the process -> Stops the process if an error occurrs in the result of previous external linkage process.

5. DM

   Transits to the “Data mapper” screen.

6. Delete

   Deletes the registered external linkage settings when this icon is clicked.

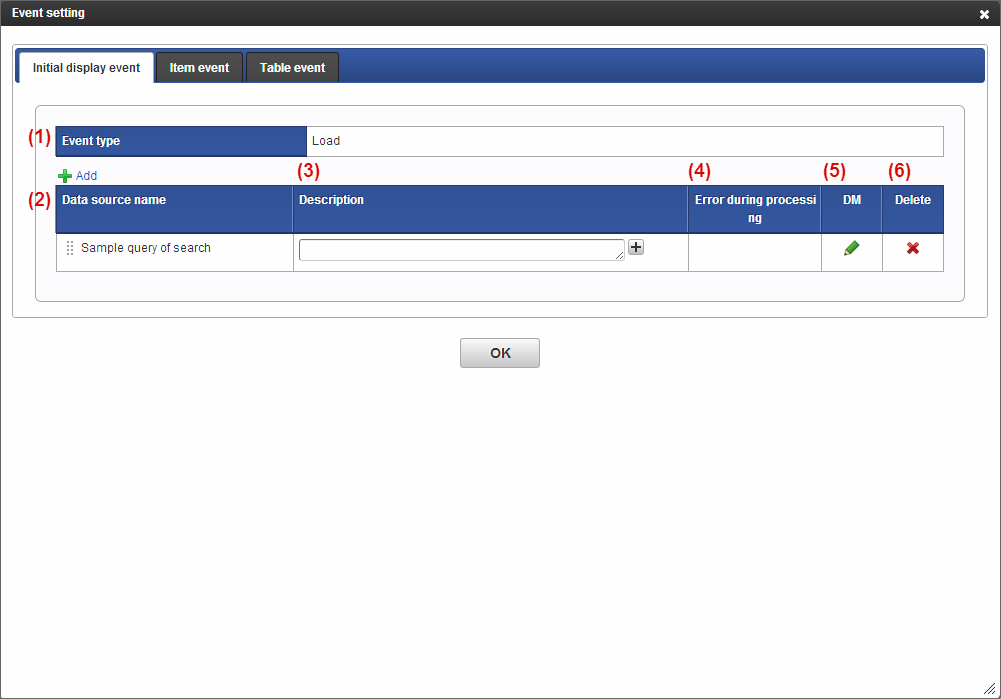

1. Event type

   In case of default display event settings, it is fixed and displayed as “load”.

2. Datasource name

   Displays the set Web service name.

3. Description

   Enter the description of external linkage process and mapping settings.

4. Error during processing

   Set the method of processing when more than 2 external linkages are registered and there is error in external linkage process to be executed just before.

   • Continue process -> Execute the process irrespective of the result of earlier external linkage process.
   • Stop process -> Stop the process in case of error in the result of earlier external linkage process.

5. DM

   Move to “Data mapper” screen.

6. Delete

   Registered external linkage settings are deleted on clicking the icon.

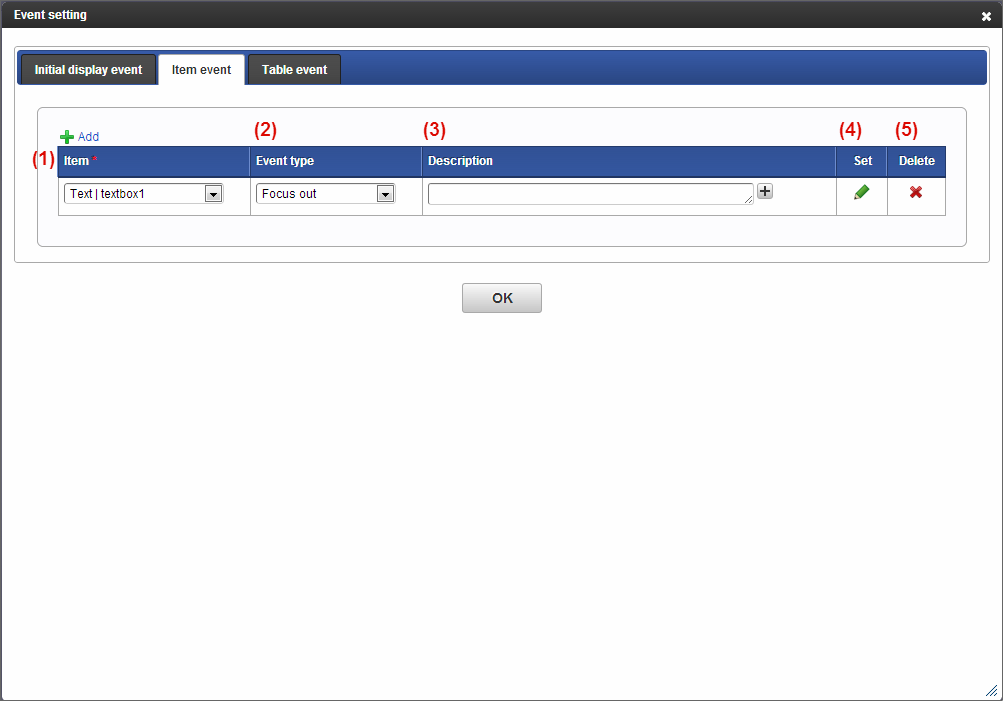

1. Item

   Display label of screen item at the time of external linkage process and field identification ID.

2. Event type

   The following event types can be selected. There are items which cannot be used depending on the type of item.

   Event type	Description
   Click	Executes the process when an item is clicked.
   Input	Execute the process when value is entered in item and focus is shifted.
   Focus In	Executes the process when the user clicks the item by the mouse or it is focussed by the [TAB] or [Enter] key.
   Focus Out	Executes the process when the user clicks other item by mouse or it is not focussed by the [TAB] or [Enter] key.
   Icon click	Execute process when of Select from list is clicked.

   • Screen items and event types which can be selected

     Screen items	Event types which can be selected
     Character string Multiple character strings Function Select from list (product_72_itemSelect) Select user Select organization Select organization/post Date Term	Input Click Focus in Focus out
     Number	Focus in Focus out
     Check box Radio button List box Select box Select affiliation	Input
     Select from list (product_80_itemSelect)	Icon click Input Click Focus in Focus out
     Term	Start date Input Start date Click Start date Focus in Start date Focus out End date Input End date Click End date Focus in End date Focus out




3. Description

   Enter the description of contents set in item and selected event type.

4. Set

   Transits to external linkage settings tab.

5. Delete

   Deletes the registered event setting when this icon is clicked.

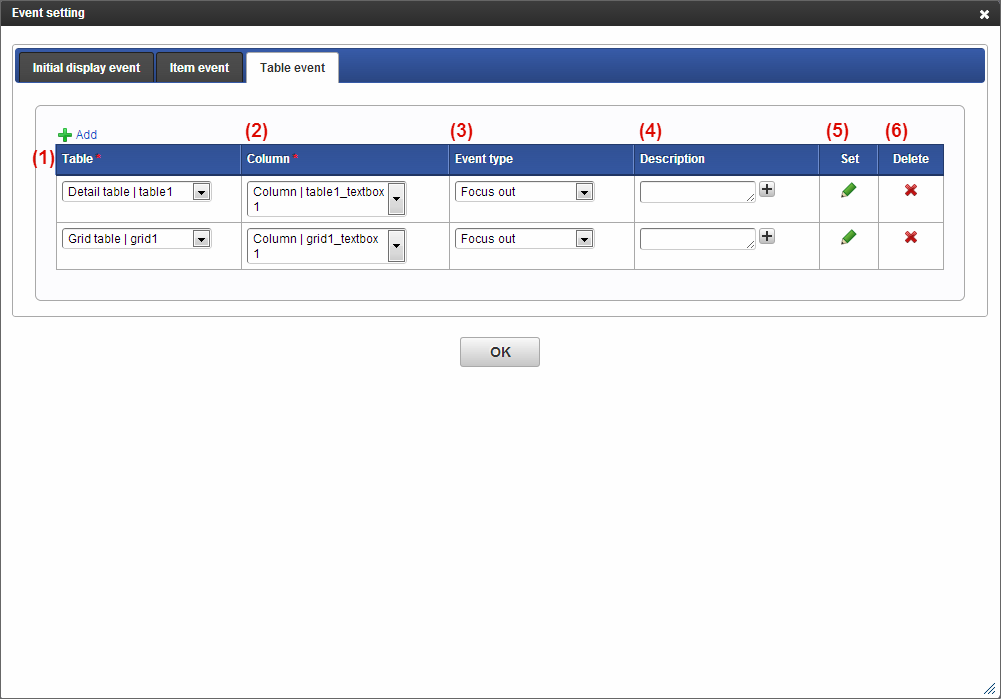

1. Table

   Display screen item “Detail table” or “Grid table” label and table ID.

2. Column

   Display the column names of screen items in table format and field identification ID at the time of external linkage process.

3. Event type

   Following can be selected in event type. They may not be used as per the item types.

   Event type	Description
   Click	Execute the process when item is clicked.
   Input	Enter value in item and execute process when focus is shifted.
   Focus in	Execute process when item is clicked by mouse and user matches the focus by pressing [TAB] key or [Enter] key.
   Focus out	Execute process when other item is clicked by mouse and user removes the focus by pressing [TAB] key or [Enter] key.
   Icon click	Execute process when of Select from list is clicked.

4. Description

   Enter the description of contents set in item and selected event type.

5. Set

   Move to external linkage settings tab.

6. Delete

   Delete the registered event settings on clicking icon.

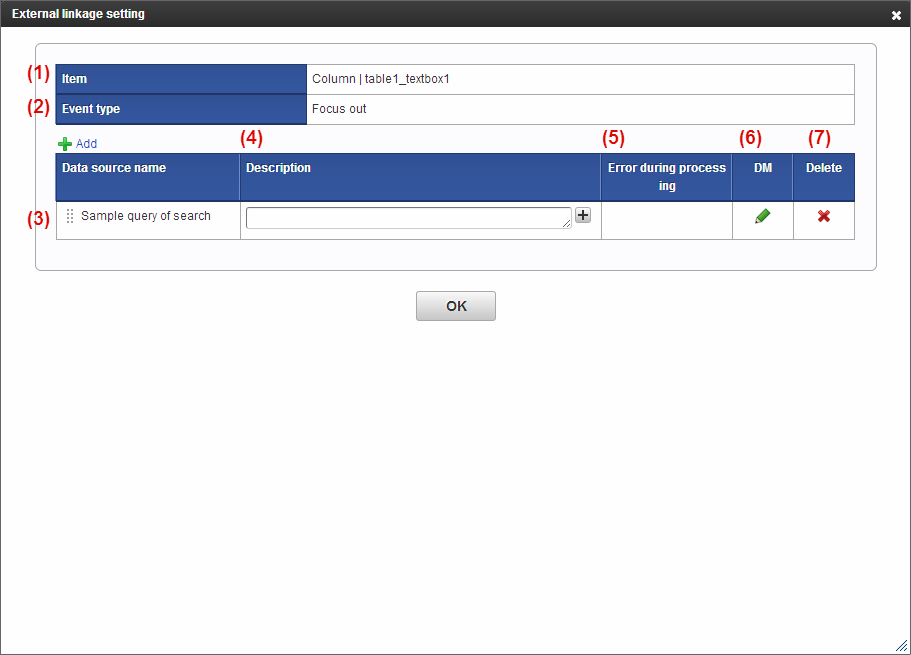

1. Item

   Display target screen item label and field identification ID of external linkage process.

2. Event type

   Displays the event type of screen item which the timing for external linkage process.

3. Data source name

   Display the name of set datasource definition.

4. Description

   Enter the description of contents set as datasource definition.

5. Error during processing

   Sets whether the process should be continued (execute the next process) or stopped when error occurs in the external linkage process executed previously when 2 or more external linkages are registered.

6. DM

   Transits to the external linkage settings (Data mapper) screen when the icon is clicked.

7. Delete

   Deletes the registered external linkage settings when the icon is clicked.

1. Item

   Display the column name of target screen item in table format of external linkage process and field identification ID.

2. Event type

   Display the event type of screen item at the time of external linkage process.

   Following types can be selected in event type. It may not be used as per the item types.

   Event type	Description
   Click	Execute the process when item is clicked.
   Input	Enter value in Item and execute process when focus is removed.
   Focus in	Execute process when item is clicked by mouse and user matches the focus by pressing [TAB] key or [Enter] key.
   Focus out	Execute process when other item is clicked by mouse and user removes the focus by pressing [TAB] key or [Enter] key.
   Icon click	Execute process when of Select from list is clicked.

3. Datasource name

   Display the name of set datasource definition.

4. Description

   Enter the description of contents set as datasource definition.

5. Error during processing

   Sets whether the process should be continued (execute the next process) or stopped when error occurs in the external linkage process executed previosuly when 2 or more external linkages are registered.

6. DM

   Transits to external linkage settings (Data mapper) screen when the icon is clicked.

7. Delete

   Deletes the registered external linkage settings when the icon is clicked.

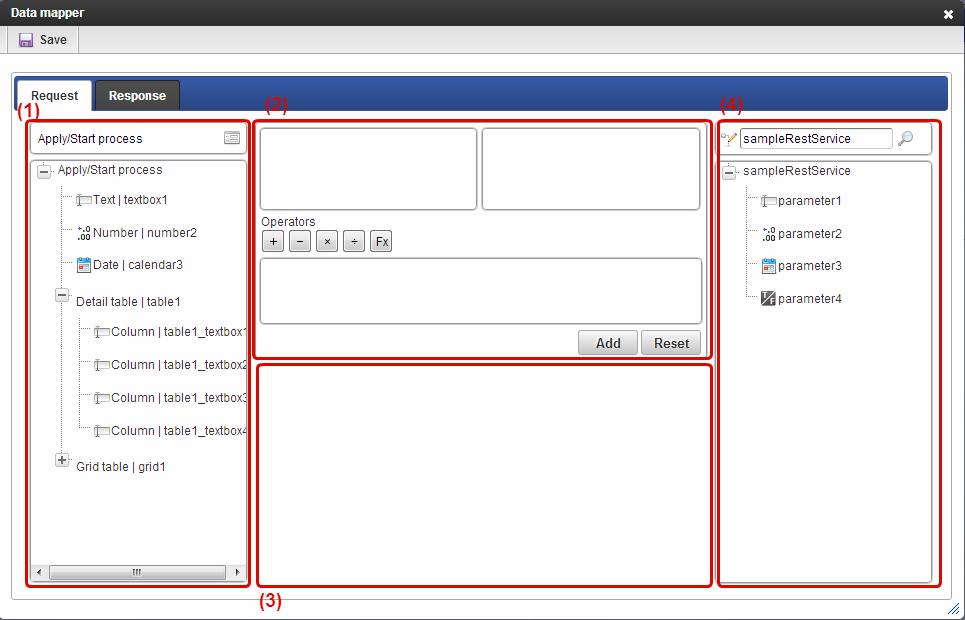

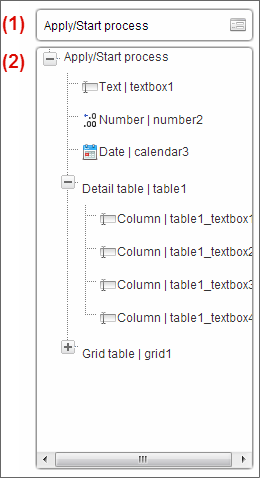

1. Form field area

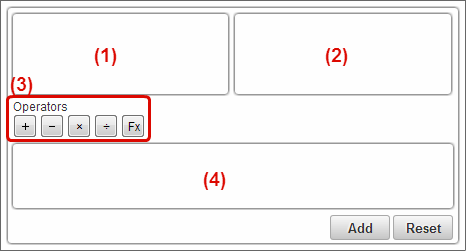

2. Work area

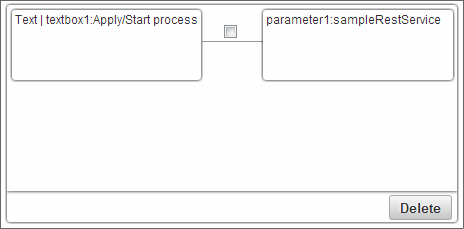

3. Mapping area

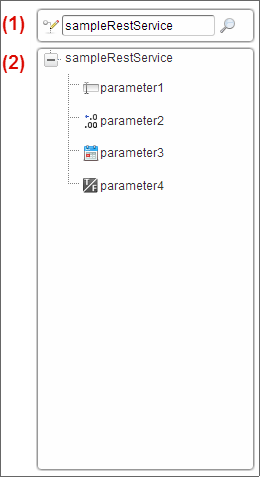

4. External linkage field area
