Concept of authorization in IM-BIS , IM-FormaDesigner¶
Describes about the authorization to create/edit the definition of flow and application in IM-BIS, IM-FormaDesigner.
Basic concept¶
- In IM-BIS , set the user or organization creating the flow and the flow and data source which can be created or edited based on the “Administration group”.
- In IM-BIS , set the application and data source which can be created or edited based on the “Administration company” and the company to which the user belongs.
Authorization to create or edit flow and data source (DB query, Web service) in IM-BIS¶

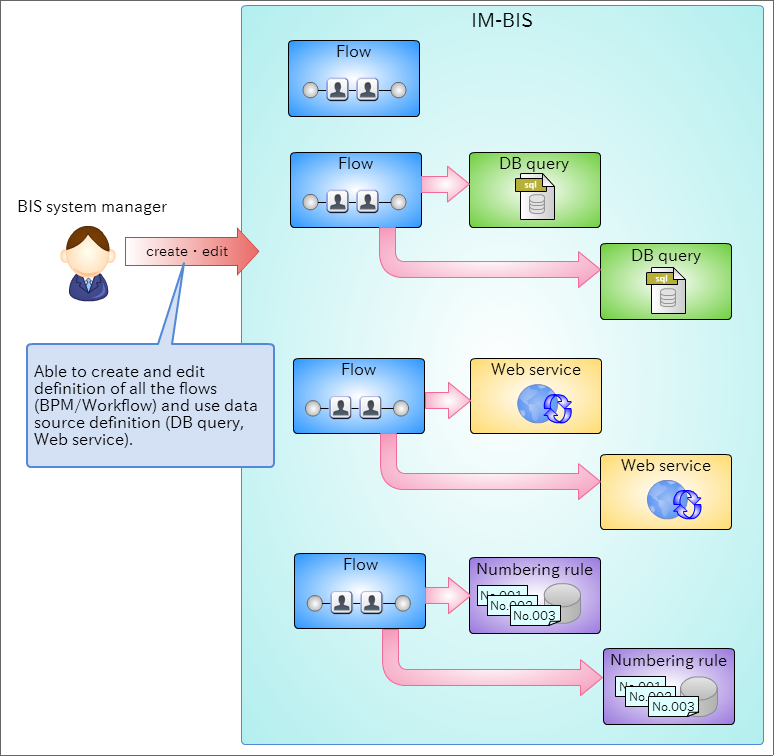

Contents which can be administered by the “BIS system manager”¶
The integration of the definitions created or edited by the “BIS system manager” is as shown in the following figure.

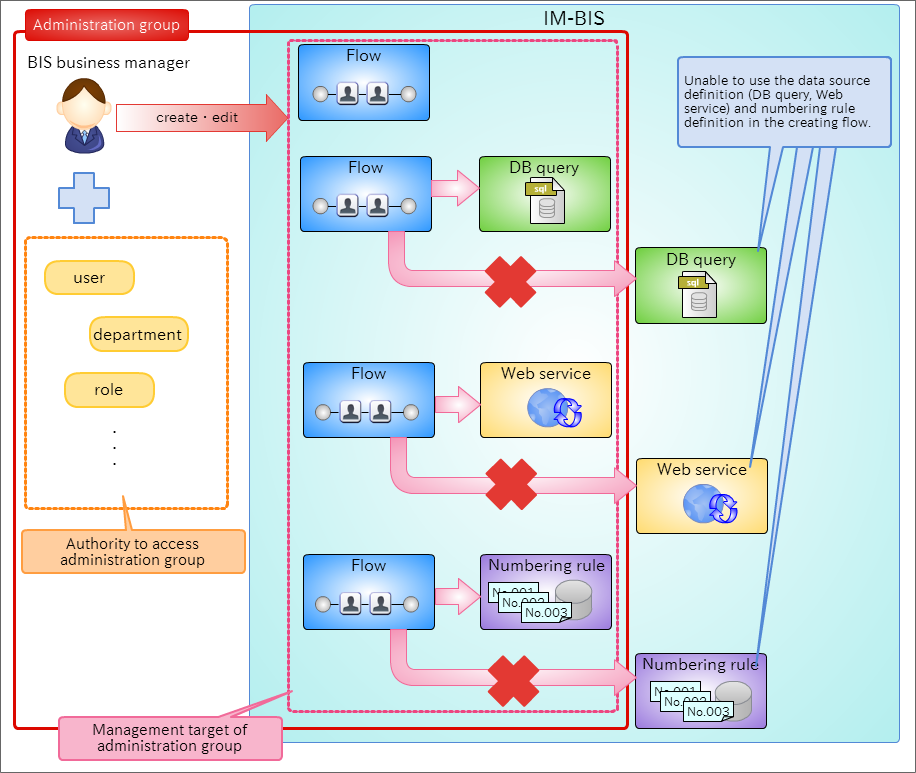

Contents which can be administered by the “BIS business manager”¶
The integration of the definitions created or edited by the “BIS business manager” is as shown in the following figure.The ‘BIS business manager’ user can create a new flow, however, editing depends on the contents of administration group which is set.
Authorization to create or edit application and data source (DB query, Web service) in IM-FormaDesigner¶

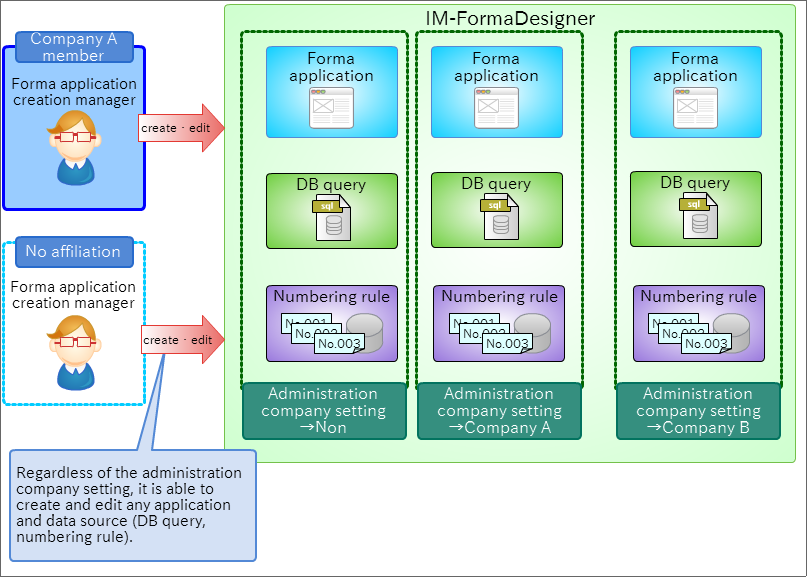

Contents which can be administered by “application creation manager”¶
The integration of the definitions created or edited by the “application creation manager” is as shown in the following figure.

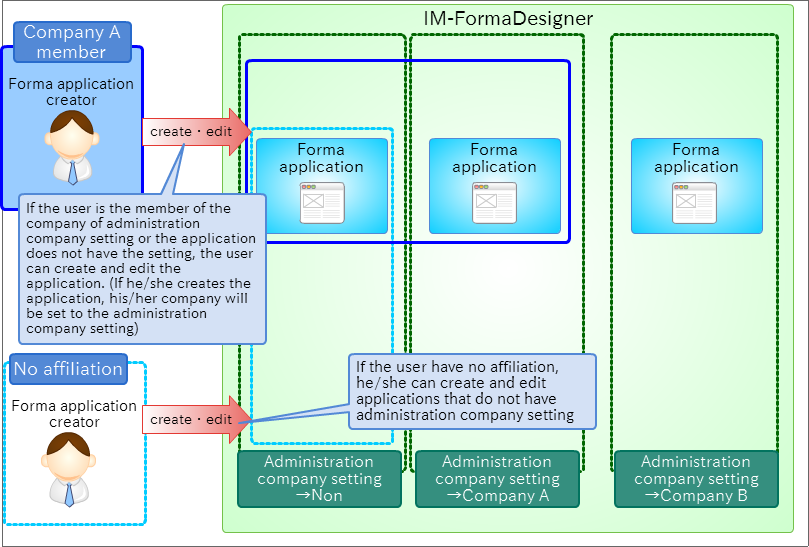

Contents which can be administered by the “Forma application creator”¶
The integration of the definitions created or edited by the “Forma application creator” is as shown in the following figure.Forma application creator can create a new application, however, editing depends on the contents of the administration company which is set.
Relation between administration company of application and data source (DB query, Web service) in IM-FormaDesigner¶
Data source (DB query, Web service) which can be used from the items (select box, Select from list etc.) that can be linked externally in application is determined by the combination of settings of administration company of data source and administration company of the application.

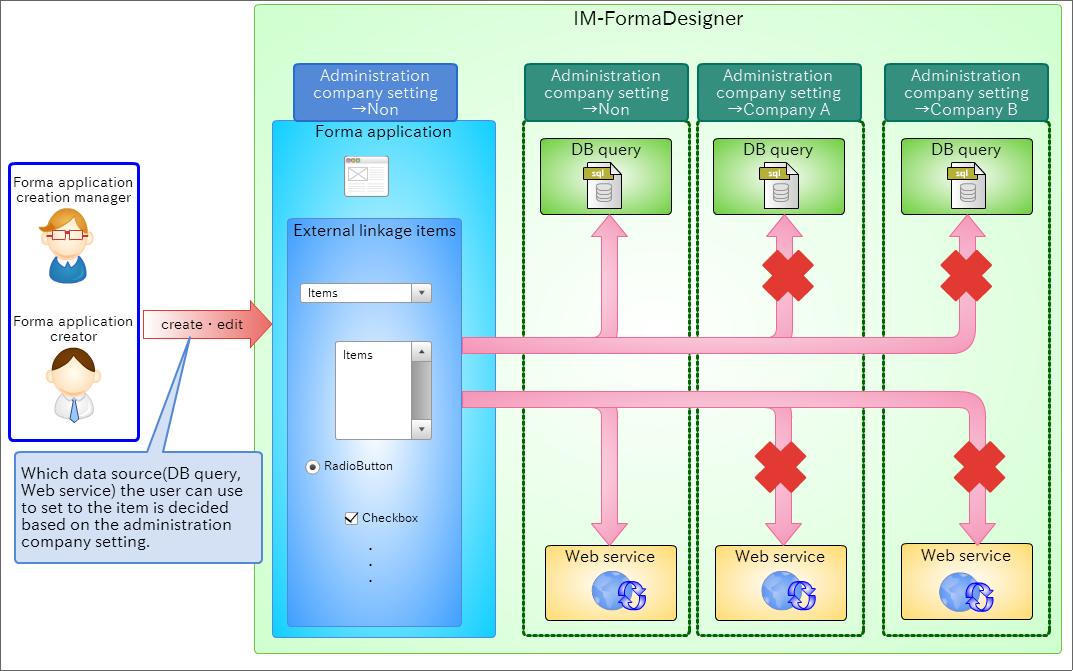

Usage of data source (DB query, Web service) when administration company setting are not performed in application

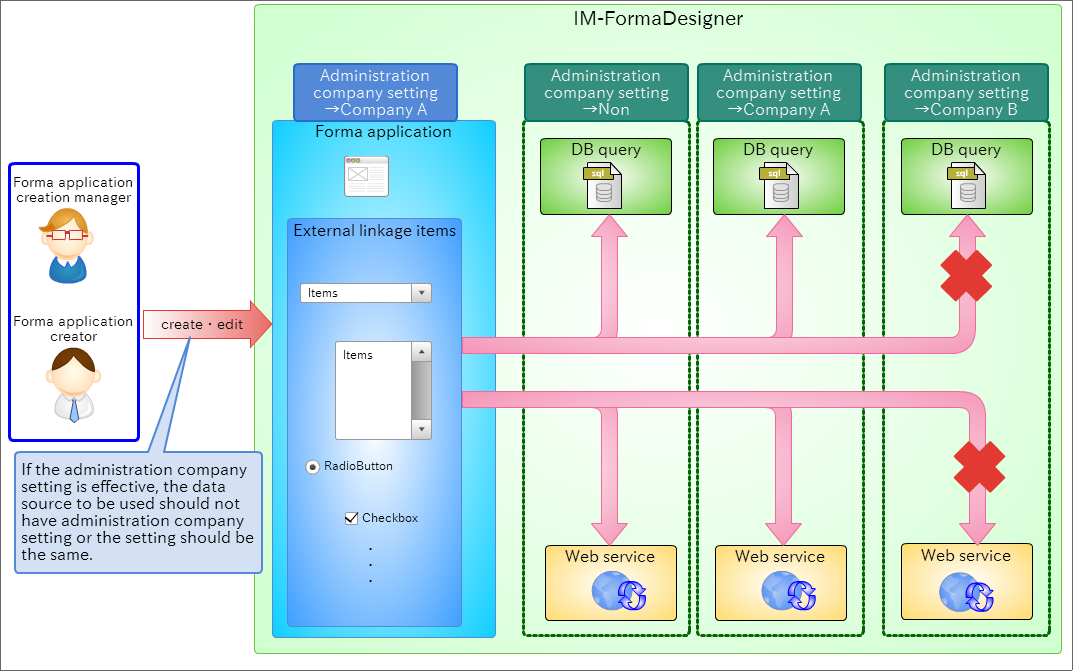

Usage of data source (DB query, Web service) when administration company setting are performed in application
Relation between administration company of numbering rule definition and application in IM-FormaDesigner¶
Numbering rule definition which can be used from auto numbering in application is determined by the combination of settings of administration company of numbering rule definition and administration company of application.

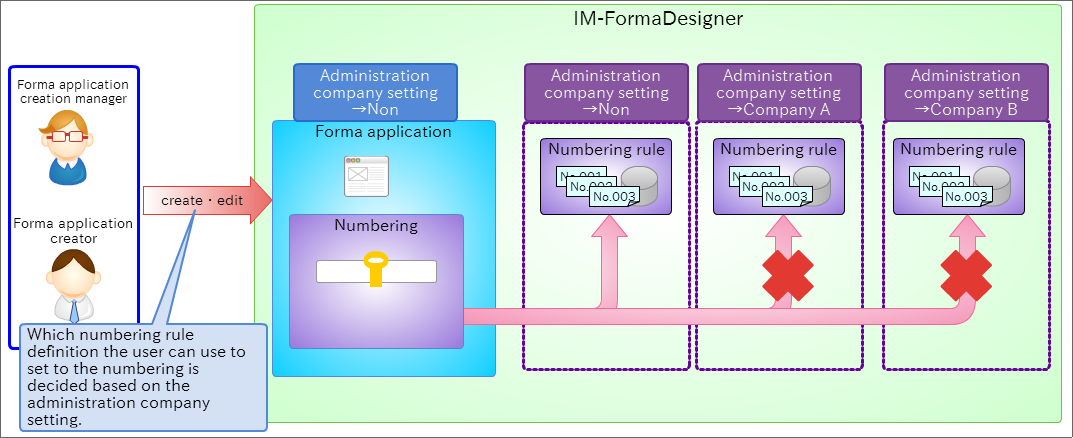

Usage of numbering rule definition when administration company setting are not performed in application

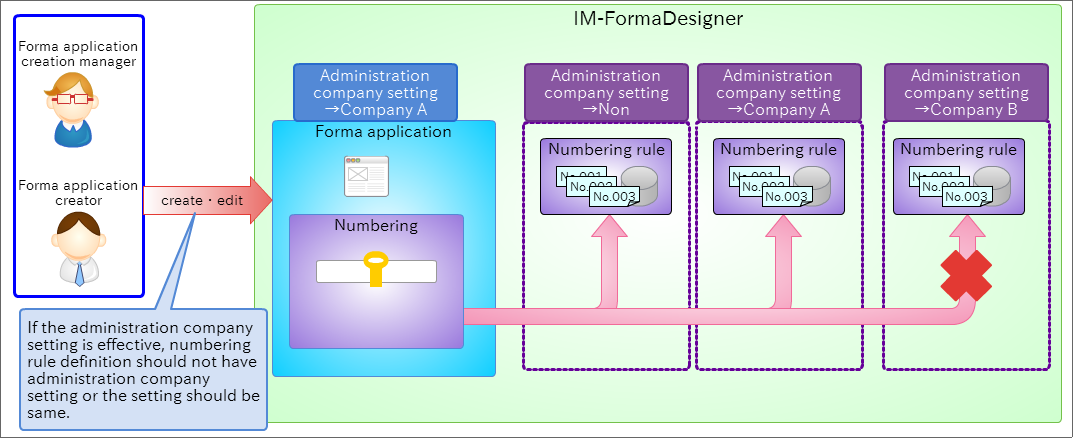

Usage of numbering rule definition when administration company setting are performed in application
